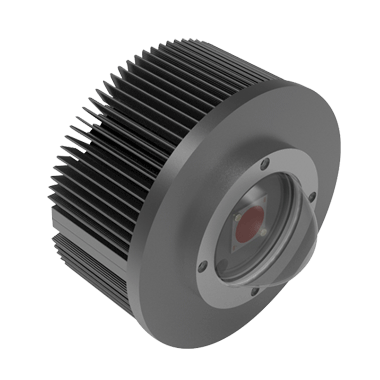

Horticulture Light Kits-165/225 Max. lumens reached 12100~16800 lm LED Cooling module

Description: Horticulture Light Kits-165/225; Design for Highbay and horticulture lights 12100~16800lm; Rth 0.4~0.5°C/w; Suitable for 80w/100w/120w/150w/180w/200w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Blac

Delivery Time: 1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

SPECIFICATIONS

Brand	Mingfa Tech
Series Name	LED heatsink module
Seriest Number	Horticulture Light Kits
Manufacturing Technology	Cold forging
Material	AL1070
Color & Finishing	Black Anodized & Clear Anodized
Certification	CE, ROHS, WEEE
Diameter(mm)	Φ165		Φ225
Height(mm)	60.0	100.0	60.0	100.0
Item Number	Horticulture Light Kits-16560	Horticulture Light Kits-165100	Horticulture Light Kits-22560	Horticulture Light Kits-225100
Max. Lumen	12600 Im	16800 Im	21000 Im	28000 Im
Dissipated Power (Ths-amb,50°C)	90.0 W	120.0 W	150.0 W	200.0 W
Thermal Resistance Rth（°C/W)	0.5°C/W	0.4°C/W	0.3°C/W	0.2°C/W
Cooling Surface Area (mm²)	362363 mm²	613892 mm²	673851 mm²	1143659 mm²
Net Weight (g)	1200.0 g	1700.0 g	2220.0 g	3150.0 g
Quantity(pcs/CTN)	9 pcs	7 pcs	6 pcs	4 pcs
Modular Types	COB&SMD	COB&SMD	COB&SMD	COB&SMD
For Environments	Indoor area,Outdoor area
For Lightings	High bay,Flood lights,Street lights,Horticulture lights,Area Lights
For Application	Industrial & Warehouse, Horticulture, Outdoor
For LED brands	Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

01

Four poles for mounting Meeanwell HBG drivers or drivers housings.
02

Side fins to be drilled M3 or M4 holes.
03

Suitable for COB and SMD light source.Compatible with light Angeles of 60/90/120 degrees.

04

With dissipation surface 40% more than traditional heatsink.
05

High-end heat dissipation products specially designed for Highbay and horticulture lights.
06

Solid bottom plate can meet IP65-IP67.
