xLED-7030/7050 cold forging led passive heatsink

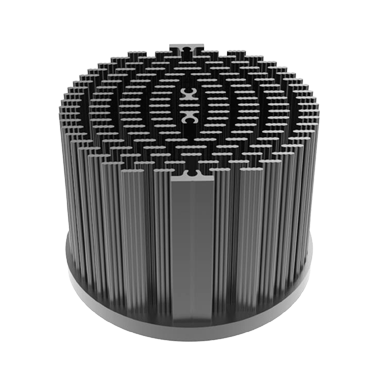

Description: LED PinFin Heat Sink ø70mmxh30mm/50mm; Design for Spotlight and Downlight 1400~2200lm; Rth 3.1~3.8°C/w; Suitable for 8w/10w/12w/15w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Black anodized.

Delivery Time: 1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

PRODUCT VIDEO

Brand	Mingfa Tech
Series Name	xLED passive heat sinks
Seriest Number	xLED-70
Manufacturing Technology	Cold forging
Material	AL1070
Color & Finishing	Black Anodized & Clear Anodized
Certification	CE, ROHS, WEEE
Diameter(mm)	Φ70
Height(mm)	30.0	50.0
Item Number	xLED-7030	xLED-7050
Max. Lumen	1800 Im	2200 Im
Dissipated Power (Ths-amb,50°C)	13.0 W	16.0 W
Thermal Resistance Rth（°C/W)	3.8°C/W	3.1°C/W
Cooling Surface Area (mm²)	54786 mm²	91577 mm²
Net Weight (g)	106.0 g	150.0 g
Quantity(pcs/CTN)	90 pcs	54 pcs
Modular Types	SMD	SMD
For Environments	Indoor area，Outdoor area
For Lightings	Spot lights,Down lights,Track lights,Architectural lights
For Application	Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands	Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

04

there are 4PCS holes at the top.
05

High-end cooling products designed for Spot light, Down light and Track light.
06

Solid bottom plate can meet IP65-IP67.
